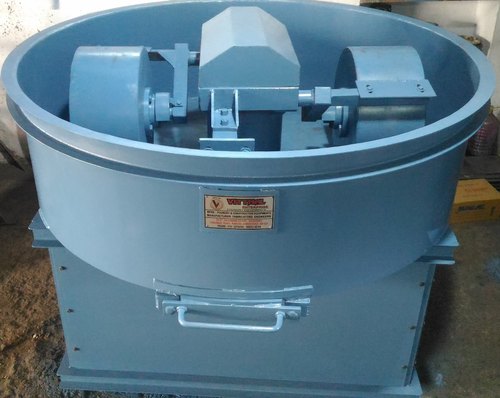

Sand Mix Muller Machine

“VITTHAL” Mix-Muller is most popular in all type and size of Foundry. It works on the principal to achieve better geen strength & permeability possible with the given Mixture.

The Study Chasis is robustly constructed from heavy section M.S. capable for continuous heavy & hard use. Roller made from close grain C.I. & heavy weight& more width. Central Bracket made from heavy M.S. Plated & keyed to main shaft, carriers scrapers & Mulling Rollers. Main shaft is coupled with bevel-Pinion/Reduction Gear Box unit & driven by Ele. Motor through V-Belts, act as safety measure in case of over loading or any obstruction in the Crib.

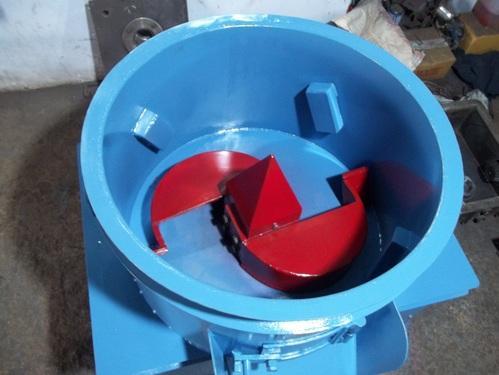

The Scrapes are so coordinated for a continuos mixing and mulling the sand. No crushing and no sand remains unmixed or hetrogenous.

More No. of right & heavy duty bearings increse the life of machine & consume less power. The instailation as also maintenance of the machine is ver easy.

Most useful for Foundry, Abrasive, Powder, Ceramic, Fertilizer, Colour, Detergent, Refractory, Paint, Masala Industries etc.


SPECIFICATION:-

Batch Capacity
Approx
Ele.Moter
( H.P )
Muller Size
RPM of Muller
( Approx )
Dia of Pan MM-ft
( Approx )
Dia X W
No.
100 kg 3 H.P 12" × 5" 2 25 - 30 900 -3'
150 kg 5 H.P 16" × 6" 2 25 - 30 1000 - 3.5'
200 kg 5 H.P 16" × 6" 2 25 - 30 1200 - 4'
250 kg 7.5 H.P 18" × 9" 2 25 - 30 1500 - 5'
300 kg 7.5 H.P 18" × 9" 2 25 - 30 1500 - 5'
500 kg 12.5 H.P 18" × 9" 2 25 - 30 1500 - 5'
750 kg 20 H.P 20" × 9" 2 25 - 30 1650 - 5'.6"
1000 kg 25 H.P 20" × 9" 2 25 - 30 1800 - 6'
