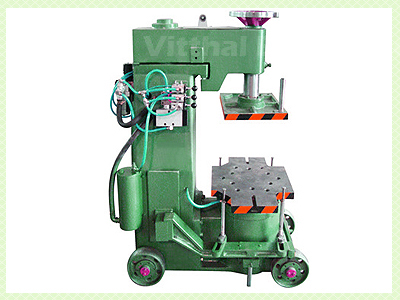

Jolt Squeeze Moulding Machine

Salient Features:-

1) Powerful impact jolting with high dynamic squeeze jolting.

2) Uniform & Rigid moulds. Consistent mould quality.

3) Damage free striping.

4) Pneumatic or electro-pneumatic controls. Pin- lift or roller lift mechanism.

5) Excellent design & sturdy construction.

Technical Data for Jolt Squeeze Moulding Machines

Sr.No.	MODEL	JS 200	JS 300	JS 450
1	Jolting Capacity (kg)	200	300	450
2	Static Squeeze Pressure (kgf)	4,000	5000	8000
3	Dynamic Squeeze Pressure (kgf)	12,000	15000	24000
4	Squeeze Stroke(mm)	120	130	140
5	Draw Stroke (mm)	220	220	320
6	Table Length (mm)	825	960	1050
7	Table Width (mm)	560	580	680
8	Mould Box Size (mm) max.	400 x 520	450 x 550	600 x 650
9	Air Consumption per Half Mould (Cuft)	10	14	18
10	Air Supply to Machine (BSP)	1¼”	1¼”	1¼”
11	Air Connection (BSP)	1"	1¼”	1¼”
12	Air Receiver Capacity (L)	500	750	1000
13	Approx. Weight of Machine (kg)	1,700	2600	3900
14	Air Pressure required (kg/cm2)	6	6	6
